Shorter Downtimes
The use of a PATCHBOX can already pay off from one downtime onwards
Up to 50% more space
In comparison to conventional cabling up to 50% more rack space
5-Year Warranty
Peace of mind, guaranteed for at least 5 years
Up to 8x faster
Maintenance, as well as installation is up to eight times faster
Facts & Features
-
Modular System
You can swap cassettes within seconds.
-
Cable Colors
Allows you to visually separate different applications from each other.
-
Cat.6a Cables
Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.
-
Fiber Optic Cables
OS2 and OM4 made with Corning® fibers.
-
Power over Ethernet
Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).
-
3 different cable lengths
0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.
-

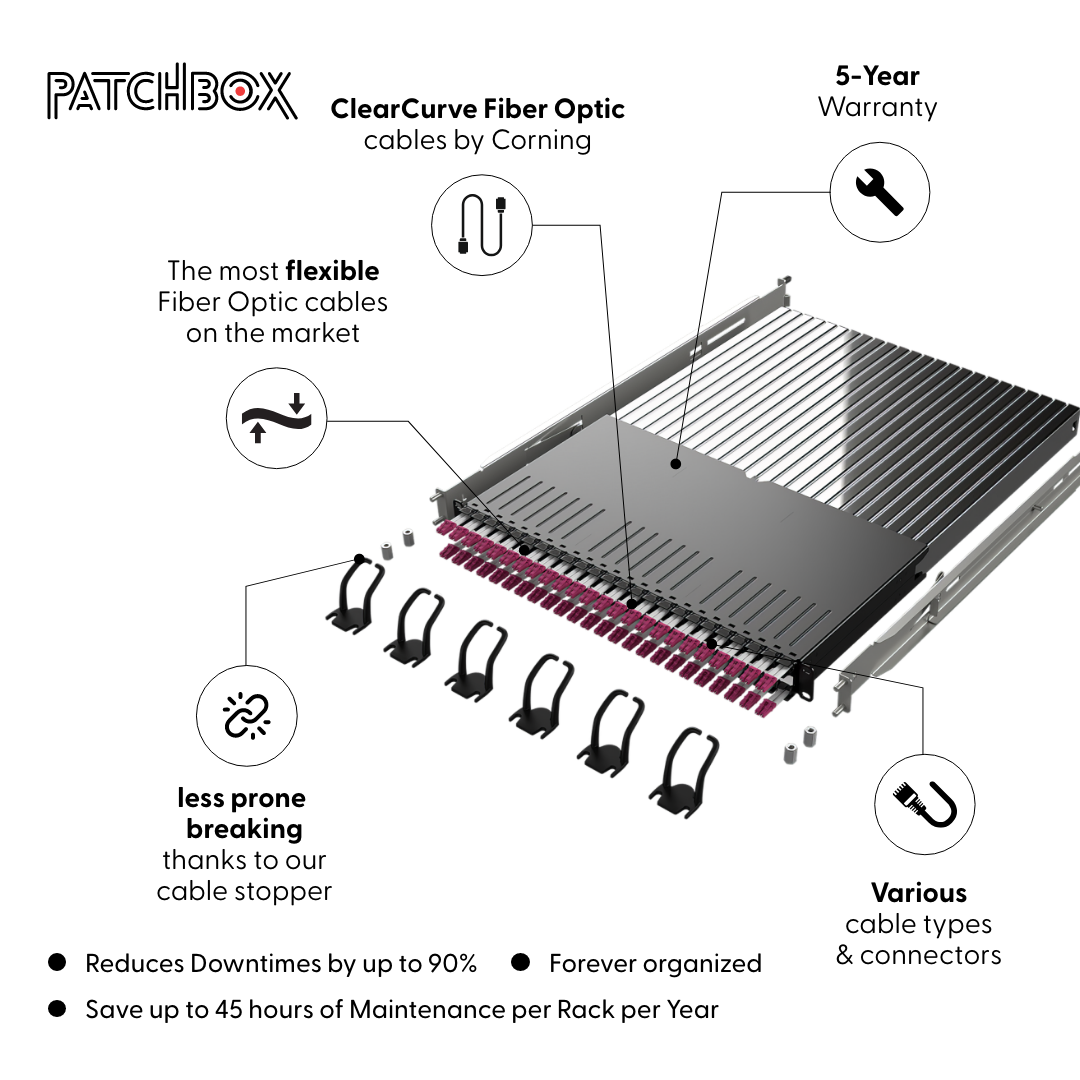

Patented Pulley Mechanism
Stores the excess length of the patch cables in the cassette.
-
5-Year Warranty
On the PATCHBOX Plus+ and 365 - also applies to the cables.
See how our cassettes work
The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.
Installed and ready to rock in a few minutes
Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.
Turn your Rack from a beast into a beauty
Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.
Specifications & Information
Technical Specifications

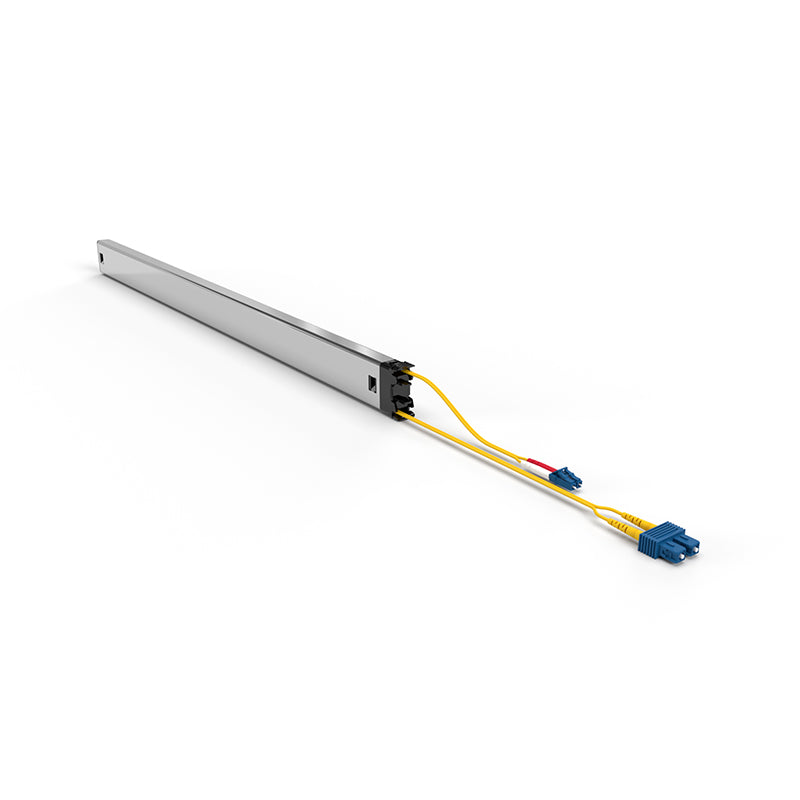

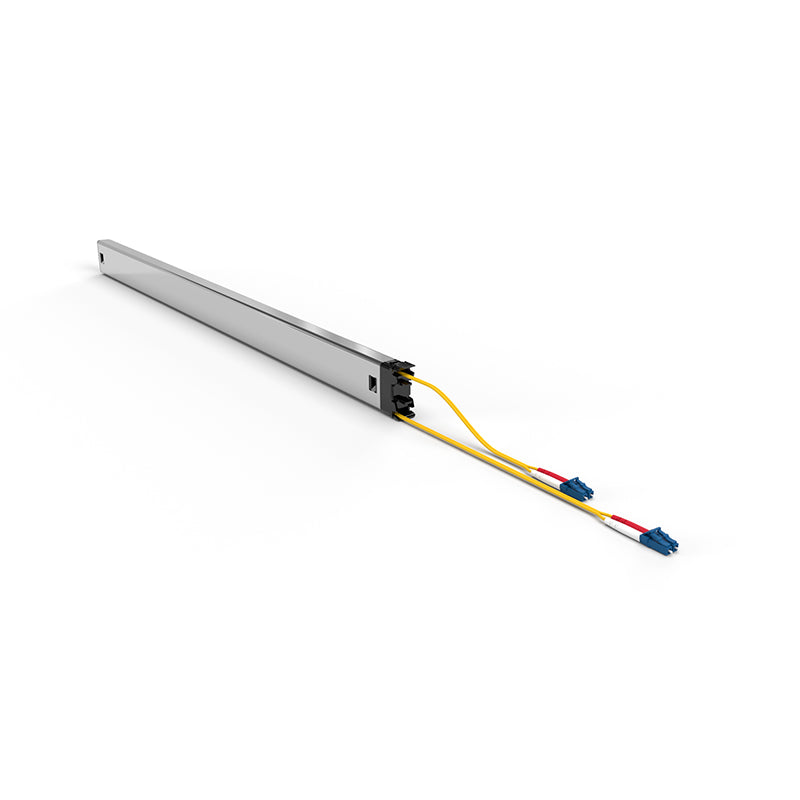

OS2 Cable
OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode, RoHS compliant

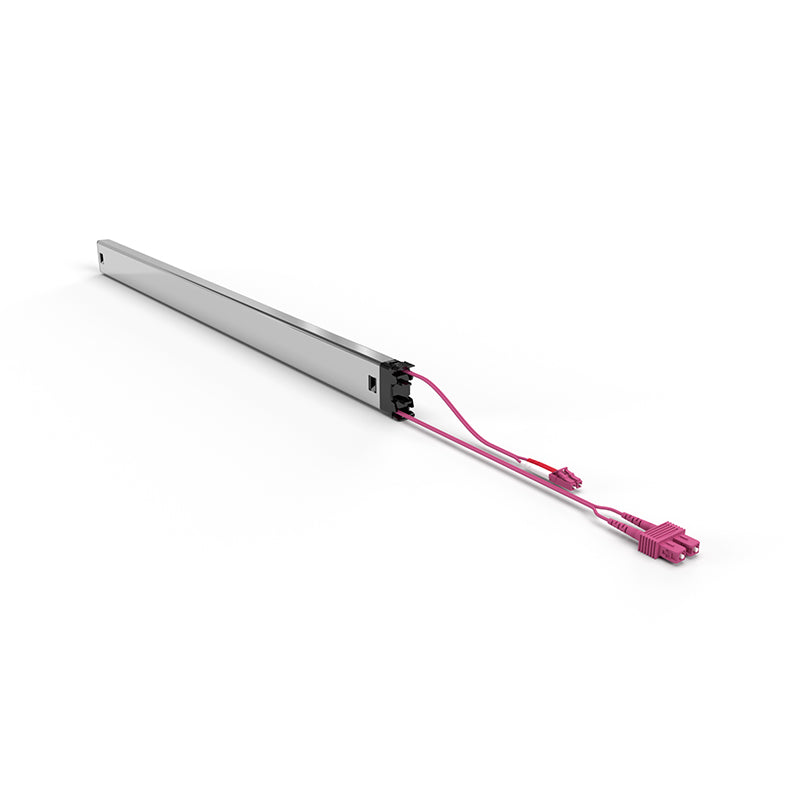

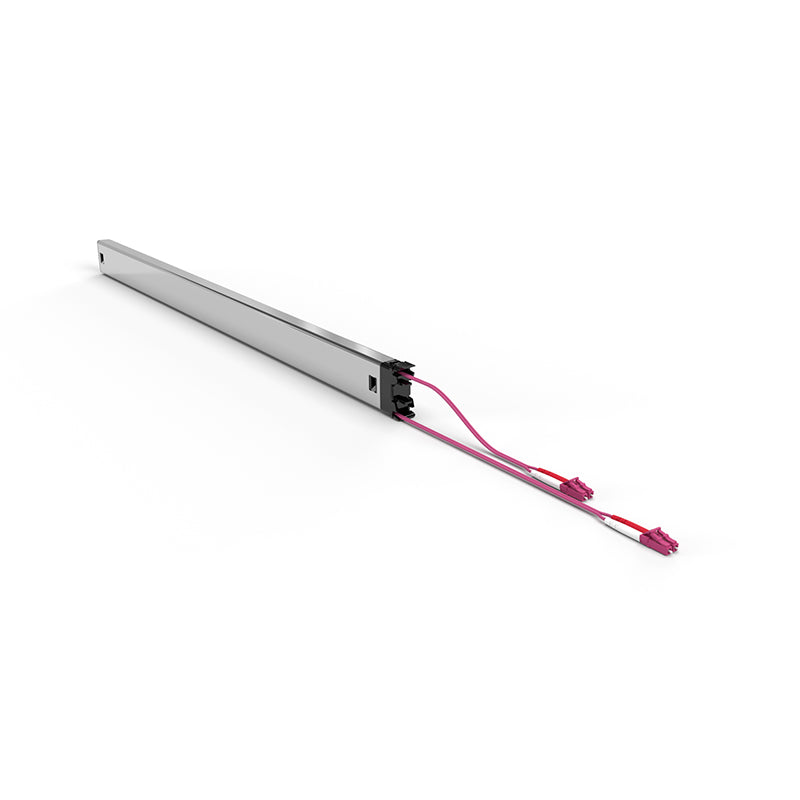

OM4 Cable
OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode, RoHS compliant

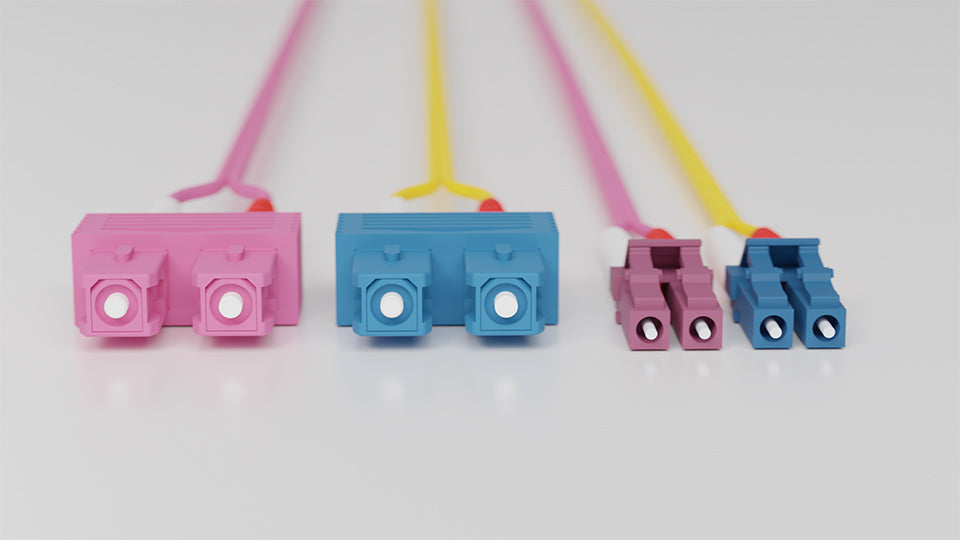

Connector
LC Duplex – LC Duplex / LC Duplex – SC Duplex
Cable length
98.43″ cover 46RU: 70.87″ extractable + 27.56″ overlength non-retractable
Cassette Profiles
Stainless steel, laser-welded
Plastic Parts
Polyoxymethylene POM
Operating Temperature Range
-13°F — 158°F
Ambient Humidity Non-Condensing
10% – 90%
Gross Weight
0.93lbs
Packaging Dimensions
27.17″ x 1.97″ x 1.97″ WxDxH
HS-Code
8544 7000
Items Included
1 x PATCHBOX Plus+ Fiber Optic OS2 / OM4 Long Range Cassette with LC-LC / LC-SC connector
