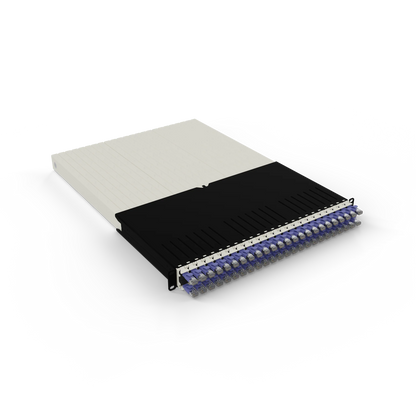

patchbox.one / 30RU / Cat.6a

patchbox.one / 30RU / Cat.6a

Trustpilot

Keep your network rack organized in the long term and downtimes at a minimum with the patchbox.one, consisting of 24 retractable cables (available as Cat.6a and Fiber Optic) and the Patchcatch, a 0RU Cable Management.

✓ Twisted Pairs
✓ ISO/IEC 11801 Channel Class Ea
✓ Power your devices with PoE++ (UTP) and PoE (STP)
✓ 23.62" Installation Depth
✓ For 2-Post Racks and 4-Post Racks
✓ 10-Year Warranty on patchbox.one & its Cables

PONE30STPBK

$721.00
$721.00
Sale Sold out
In stock

Configuration

Accepted payment methods

  • AMEX
  • Apple-Pay
  • Google-Play
  • Mastercard
  • Visa
  • paypal

Products are sold & shipped by US Partner Synergy Micro Solutions.
View full details
Shorter Downtimes
Shorter Downtimes

The use of a PATCHBOX can already pay off from one downtime onwards

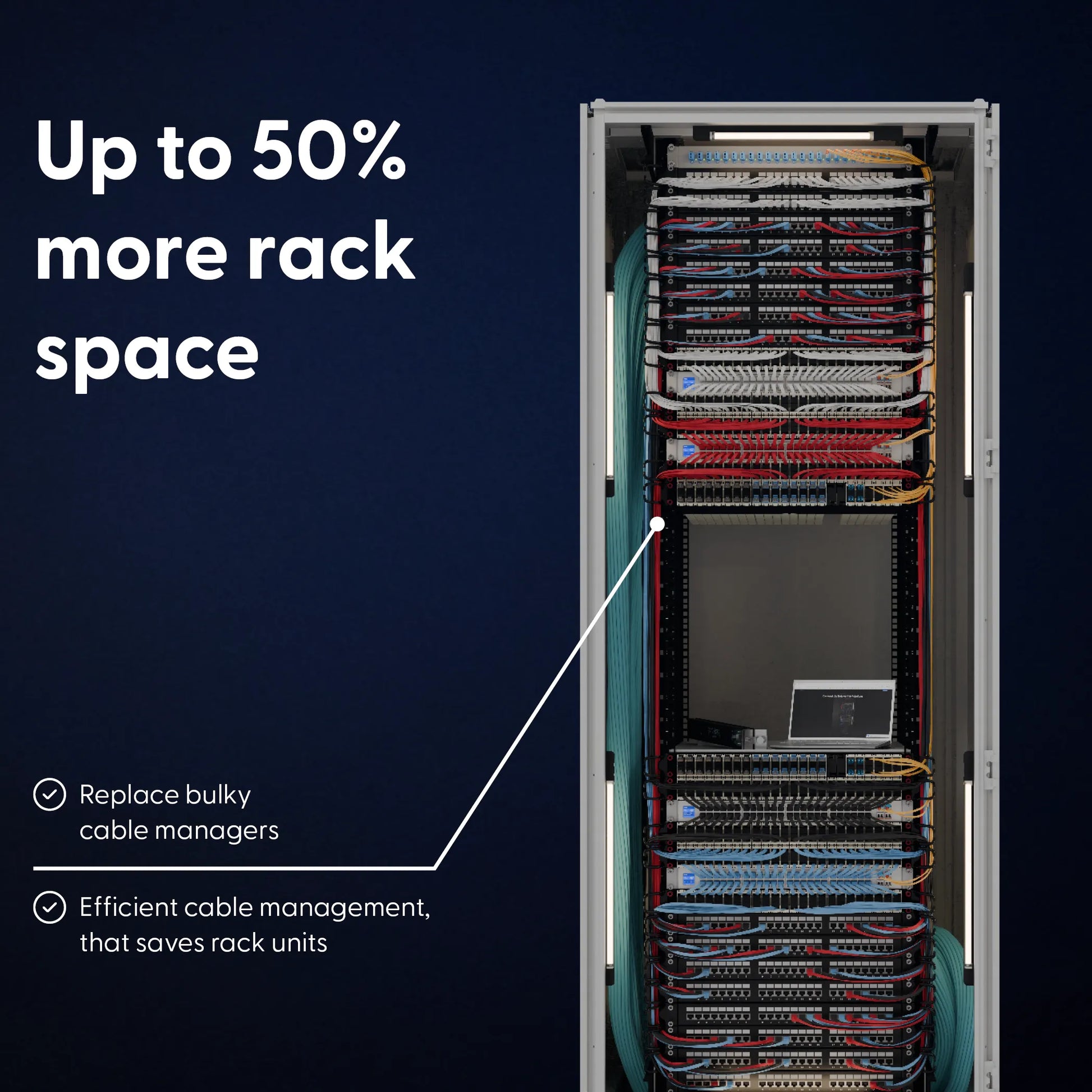

Up to 50% more space
Up to 50% more space

In comparison to conventional cabling up to 50% more rack space

10-Year Warranty
10-Year Warranty

Peace of mind, guaranteed for at least 10 years

Up to 10x faster
Up to 10x faster

Maintenance, as well as installation is up to ten times faster

You are in good company!
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance

Facts & Features

  • Modular System

    You can swap cassettes within seconds.

  • Cable Colors

    Allows you to visually separate different applications from each other.

  • Cat.6a Cables

    Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.

  • Fiber Optic Cables

    OS2 and OM4 made with Corning® fibers.

  • Power over Ethernet

    Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).

  • 3 different cable lengths

    2.6ft covers 8RU, 6ft covers 30RU and 8.2ft covers 46 RU.

  • Patented Pulley Mechanism

    Stores the excess length of the patch cables in the cassette.

  • 10-Year Warranty

    On the patchbox.one 8RU and 30RU - also applies to the cables.

See how our cassettes work

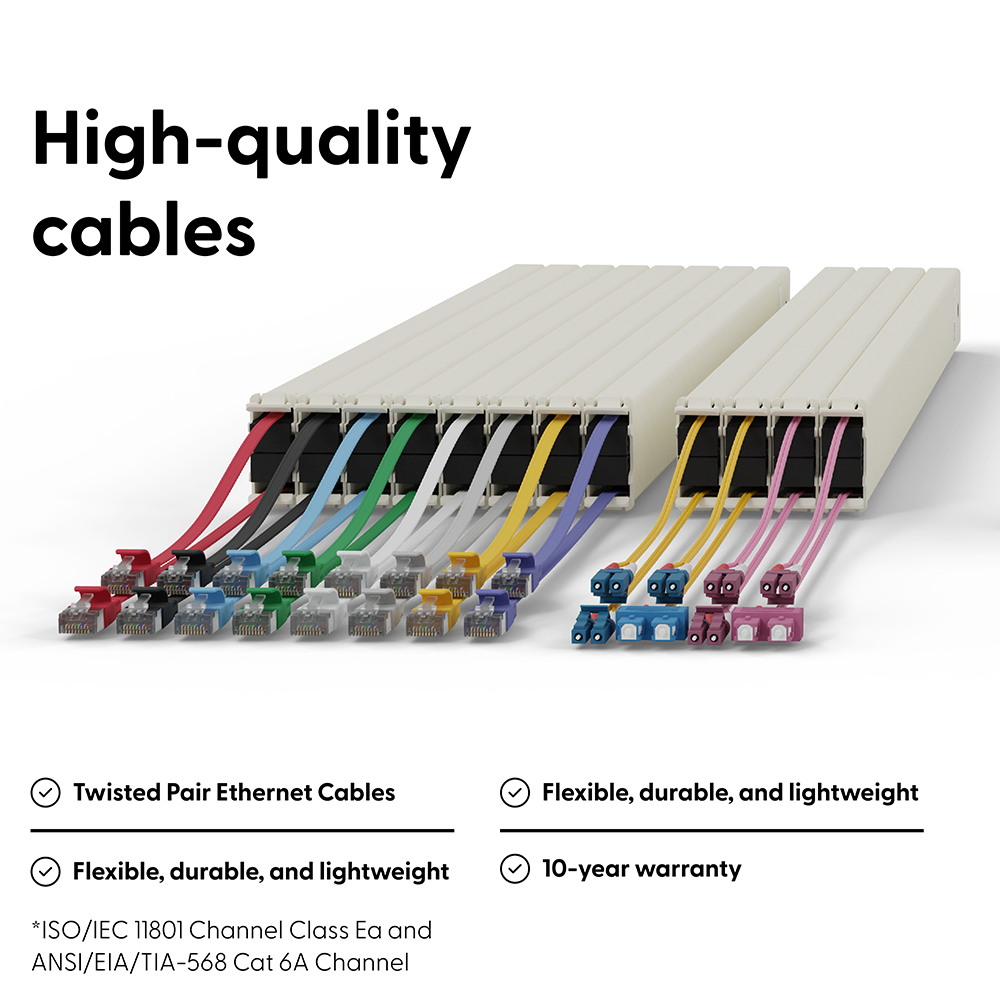

The easily exchangeable patchbox.one / Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.

Installed and ready to rock in a few minutes

Save money thanks to the patchbox.one. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.

Turn your Rack from a beast into a beauty

Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.

Before
After

Specifications & Information

Technical Specifications

STP Cable
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant

UTP Cable
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60W)), RoHS compliant

Connector Cat.6a
RJ45 shielded plug, pins gold plated, snagless booted

Cable length
6ft cover 30RU

Frame
RAL9005 powder coated steel

Cassette Profiles
ABS and RAL9001

Mounting Rails
Steel and RAL9005

Plastic Parts
Polyoxymethylene POM

Operating Temperature
50°F — 140°F

Ambient Humidity Non-Condensing
10% - 90%

Gross Weight
18.87lbs

Packaging Dimensions
31.45″ x 23.11″ x 2.16″ WxDxH

HS-Code
8544 4210

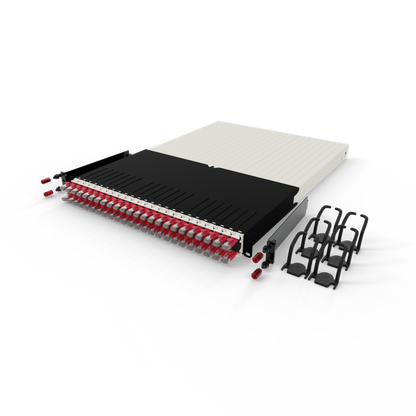

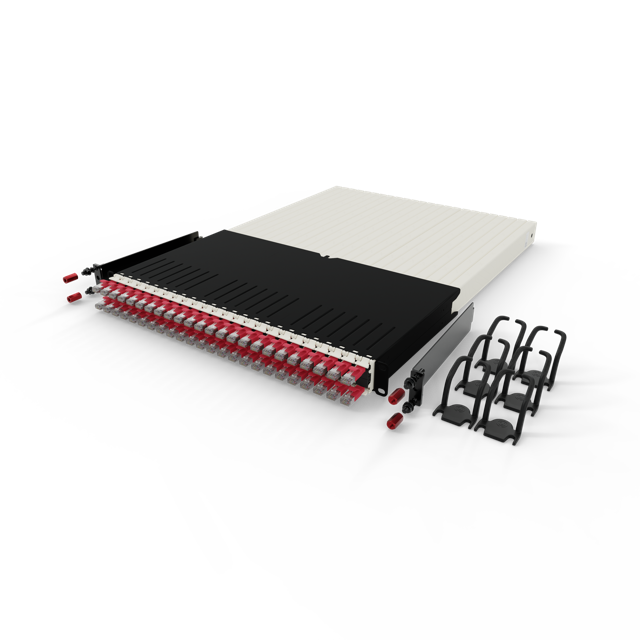

Items included

24 x patchbox.one / Cassette / 30RU / Cat.6a
1 x patchbox.one / Frame
4 x Flanged Hex Nuts
4 x Hex Nuts
6 x Patchcatch
2 x Mounting Rails

Shipping

Products are sold and shipped by exclusive PATCHBOX US Partner Synergy Micro Solutions.

Carrier:
Products are shipped with UPS.

The processing and delivery time depends on the shipping destination and the order volume. Find more information here.

Instructions & manuals

Tech Specs

Instructions
