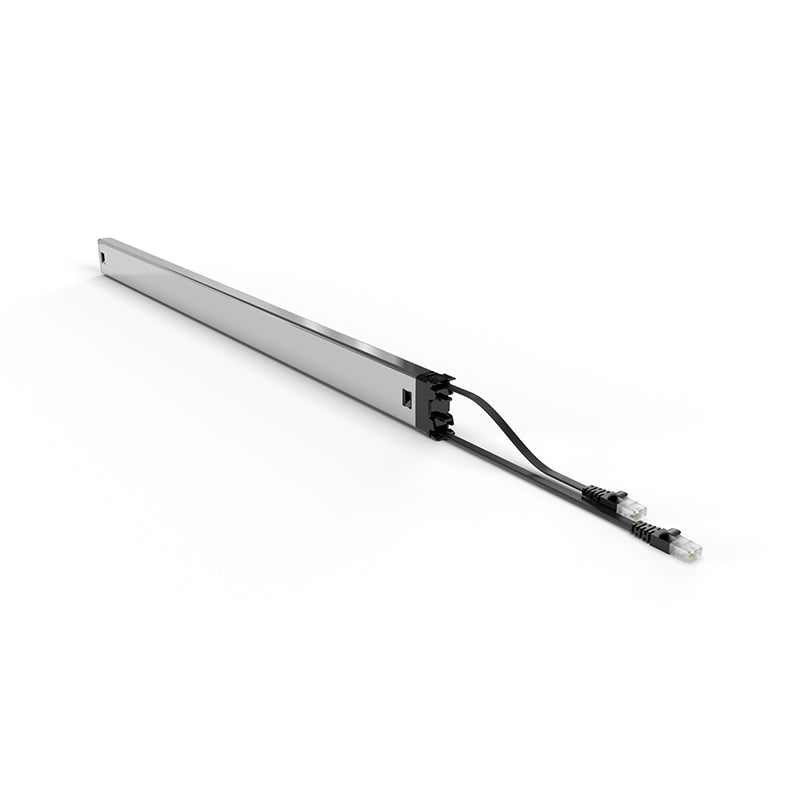

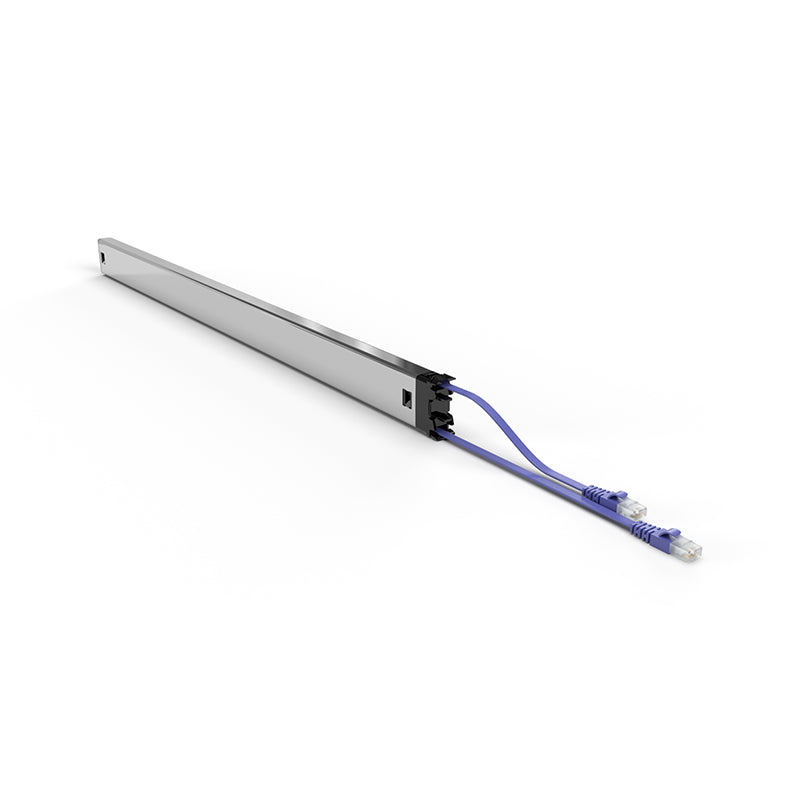

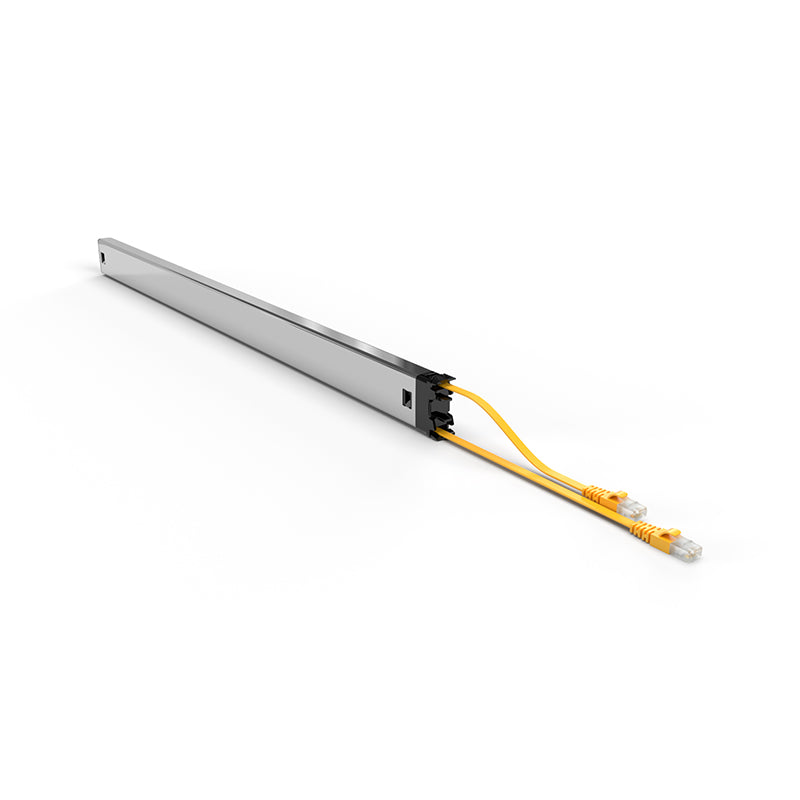

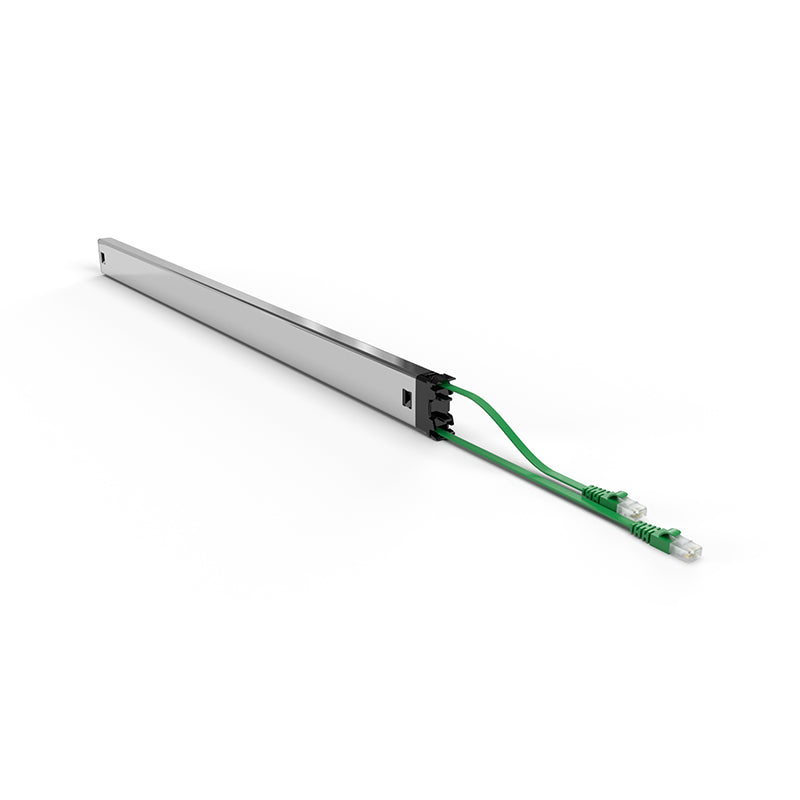

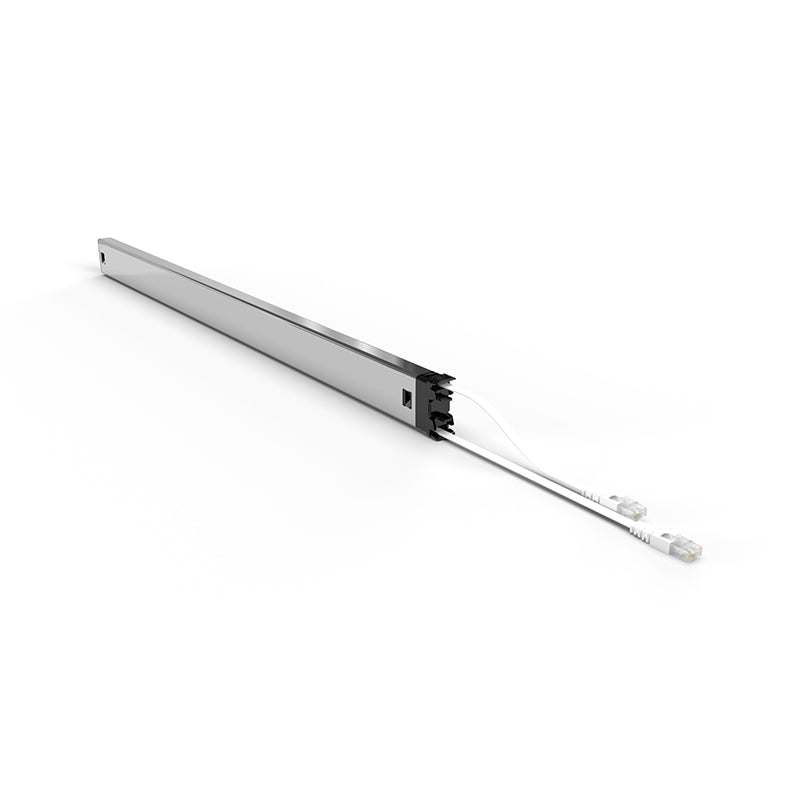

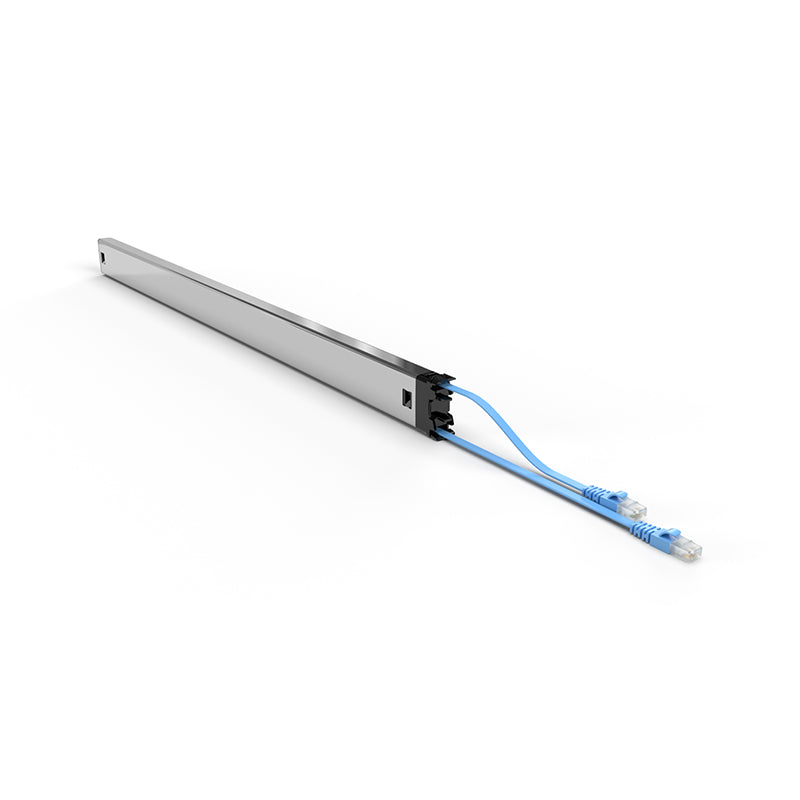

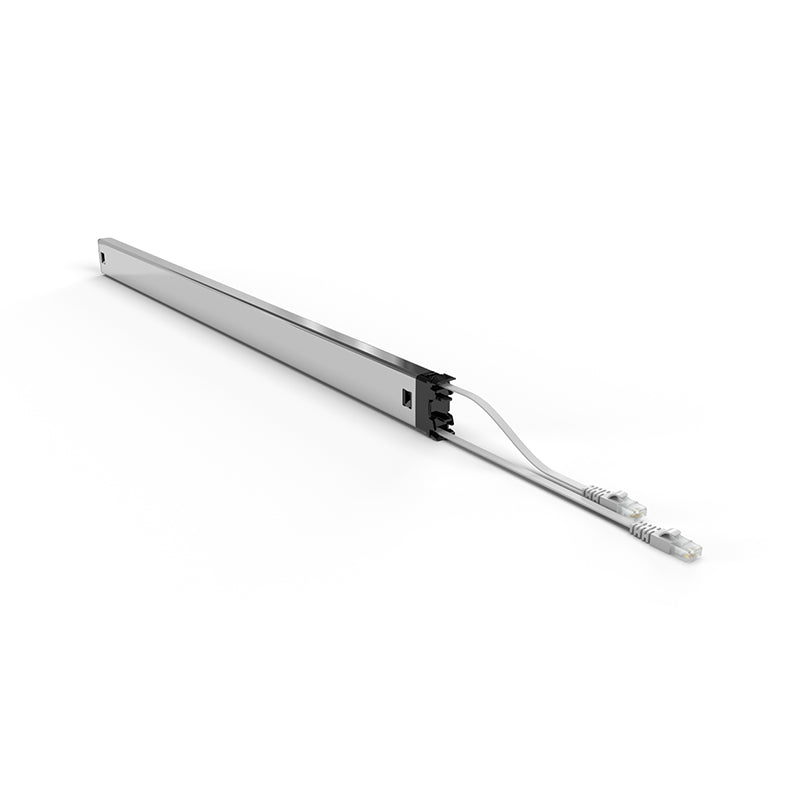

PATCHBOX Plus+ Cat.6a Long Range Cassette

PATCHBOX Plus+ Cat.6a Long Range Cassette

Trustpilot

Build your own PATCHBOX® with various cable types and colours of your choice! The PATCHBOX® Frame offers space for 24 Cable Cassettes. The extra-long Cat.6a cable inside PATCHBOX® Cassette Plus+ Long Range is 2.5m long and covers up to 46RU (Note: 0.7m are not retractable and hang out of the cassette). You can decide between UTP and STP shielding and eight different cable colours for better overview.

C60STPXC6AX31B

$28.00
$28.00
Sale Sold out
In stock

Configuration

Accepted payment methods

  • AMEX
  • Apple-Pay
  • Google-Play
  • Mastercard
  • Visa
  • paypal

Products are sold & shipped by US Partner Synergy Micro Solutions.
View full details
Shorter Downtimes
Shorter Downtimes

The use of a PATCHBOX can already pay off from one downtime onwards

Up to 50% more space
Up to 50% more space

In comparison to conventional cabling up to 50% more rack space

5-Year Warranty
5-Year Warranty

Peace of mind, guaranteed for at least 5 years

Up to 8x faster
Up to 8x faster

Maintenance, as well as installation is up to eight times faster

You are in good company!
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance

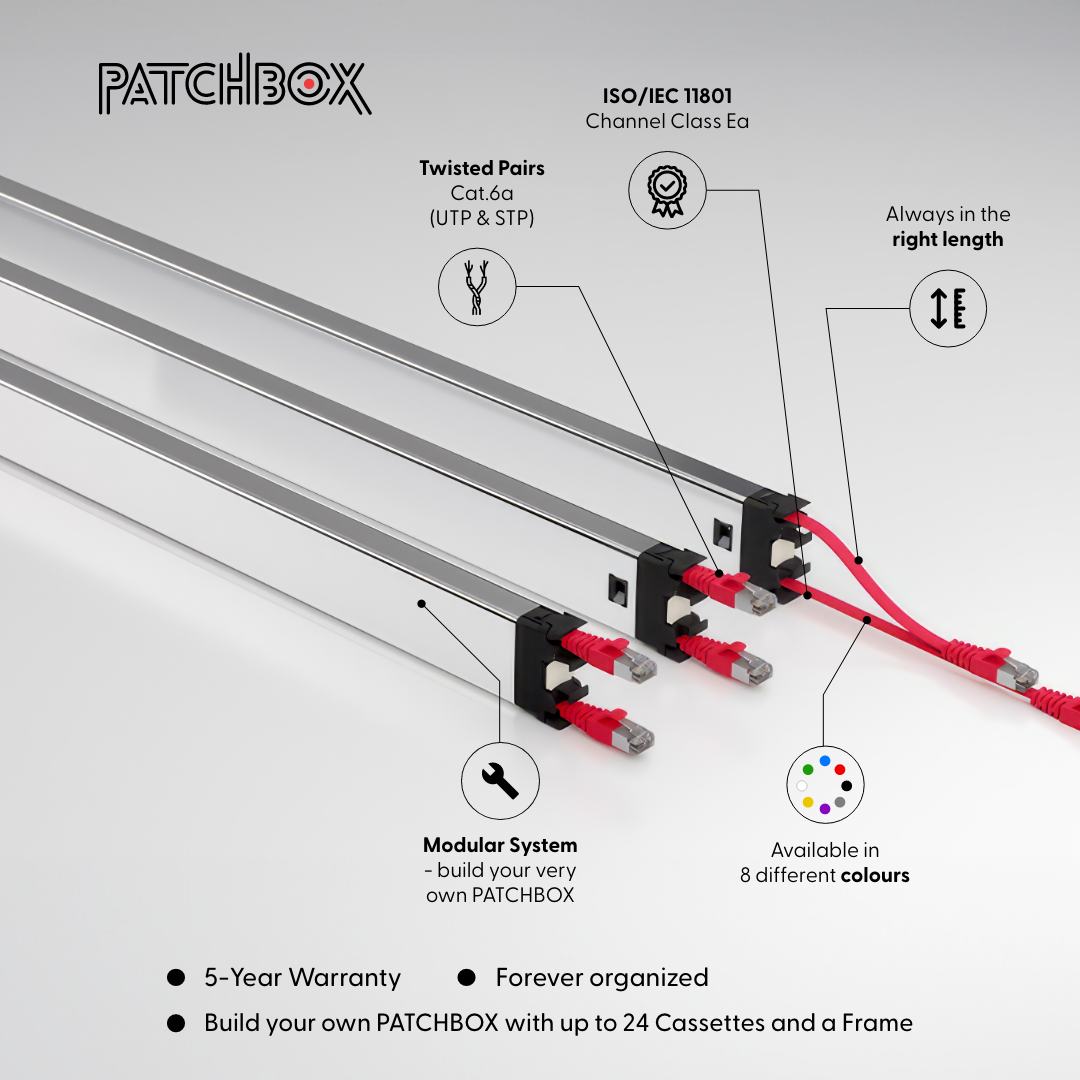

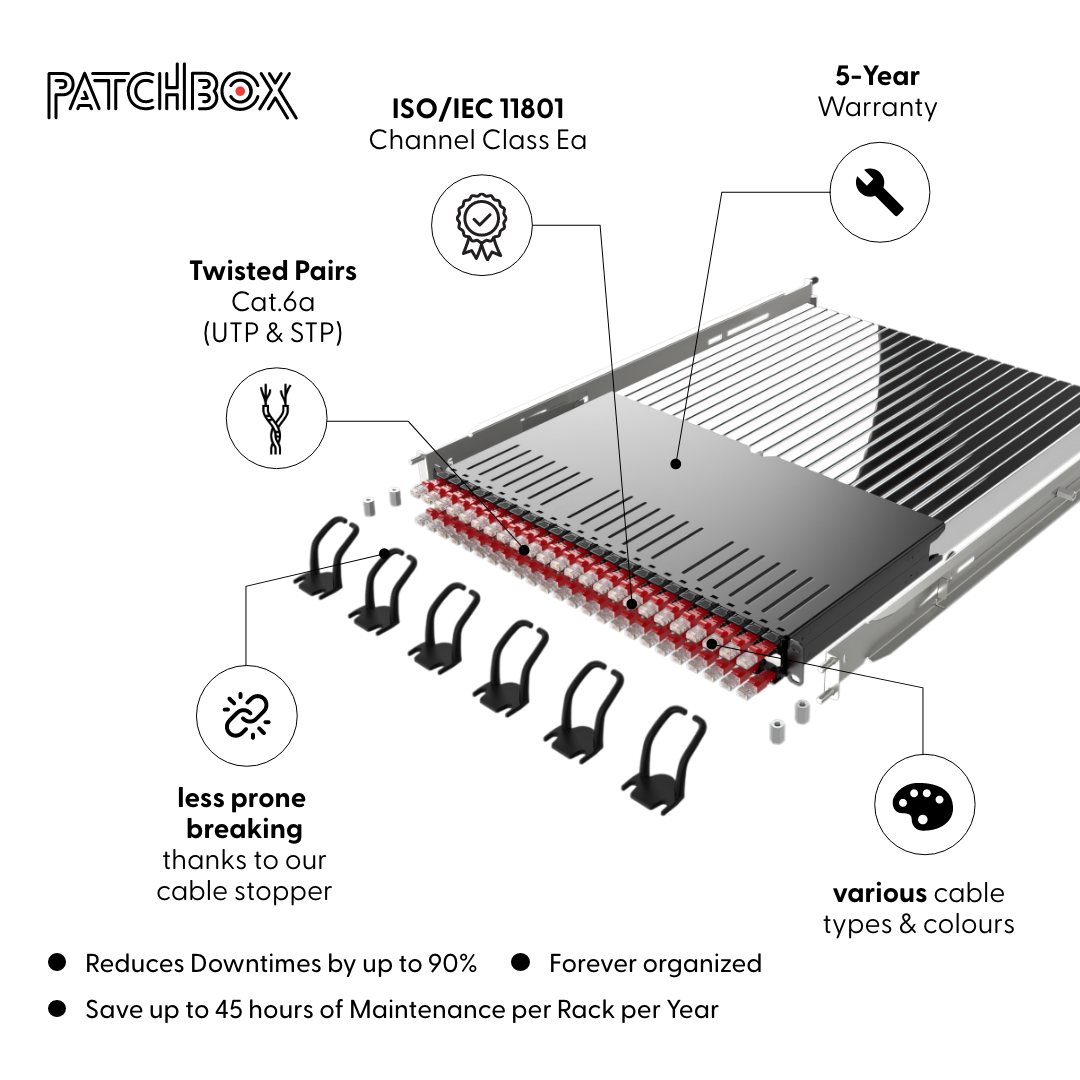

Facts & Features

  • Modular System

    You can swap cassettes within seconds.

  • Cable Colors

    Allows you to visually separate different applications from each other.

  • Cat.6a Cables

    Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.

  • Fiber Optic Cables

    OS2 and OM4 made with Corning® fibers.

  • Power over Ethernet

    Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).

  • 3 different cable lengths

    0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.

  • Patented Pulley Mechanism

    Stores the excess length of the patch cables in the cassette.

  • 5-Year Warranty

    On the PATCHBOX Plus+ and 365 - also applies to the cables.

See how our cassettes work

The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.

Installed and ready to rock in a few minutes

Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.

Turn your Rack from a beast into a beauty

Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.

Before
After

Specifications & Information

Technical Specifications

STP Cable
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant

UTP Cable
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant

Connector
RJ45 shielded plug, pins gold plated, snagless booted

Cable length
98.43″ cover 46RU: 70.87″ extractable + 27.56″ overlength non-retractable

Cassette Profiles
Stainless steel, laser-welded

Plastic Parts
Polyoxymethylene POM

Operating Temperature Range
-4°F — 140°F

Ambient Humidity Non-Condensing
10% – 90%

Gross Weight
0.93lbs

Packaging Dimensions
27.17″ x 1.97″ x 1.97″ WxDxH

HS-Code
8544 4210

Items included

1 x PATCHBOX Plus+ STP / UTP Long Range Cassette with Cat.6a cable

Shipping

Products are sold and shipped by exclusive PATCHBOX US Partner Synergy Micro Solutions.

Carrier:
Products are shipped with UPS.

The processing and delivery time depends on the shipping destination and the order volume. Find more information here.
