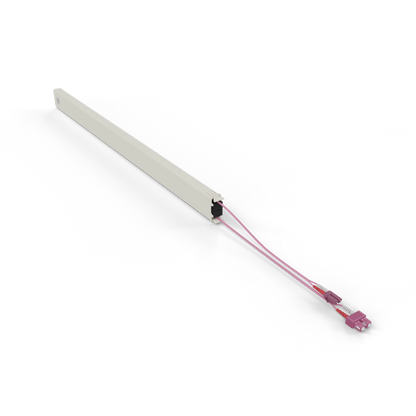

patchbox.one / Cassette / 46RU / Fiber Optic

patchbox.one / Cassette / 46RU / Fiber Optic

Trustpilot

Want to build your own patchbox.one? Fill your Frame with up to 24 Cable Cassettes and have it your way – choose the cable type, colour and connector type you desire.

The Frame with patchbox.one / Cassette / 8RU can be mounted with the /dev/mount, while a Frame with patchbox.one / Cassette / 30RU or 46RU must be mounted with its mounting rails.

✓ Super flexible Corning® ClearCurve® Fiber Optic Cables
✓ Cables always in your desired length
✓ 10/40/100 Gb/s
✓ Backward compatible with the PATCHBOX Plus+/365
✓ 10-Year Warranty on Cassettes & Cables

CONE46OS212

$35.00
$35.00
Sale Sold out
In stock

Configuration

Accepted payment methods

  • AMEX
  • Apple-Pay
  • Google-Play
  • Mastercard
  • Visa
  • paypal

Products are sold & shipped by US Partner Synergy Micro Solutions.
View full details
Shorter Downtimes
Shorter Downtimes

The use of a PATCHBOX can already pay off from one downtime onwards

Up to 50% more space
Up to 50% more space

In comparison to conventional cabling up to 50% more rack space

10-Year Warranty
10-Year Warranty

Peace of mind, guaranteed for at least ten years

Up to 10x faster
Up to 10x faster

Maintenance, as well as installation is up to ten times faster

You are in good company!
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Amazon
  • Bosch
  • AMD
  • Decathlon
  • Epic-Games
  • Eppendorf
  • Hilton
  • Hitachi
  • Internet-Archive
  • McDonalds
  • Microsoft
  • Honeywell
  • Deloitte
  • Intel
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance
  • Mitsubishi
  • Mondi
  • VW
  • SpaceX
  • NBC
  • Siemens
  • Marines
  • Verizon
  • US-Air-Force
  • Walt-Disney
  • McLaren
  • Cisco
  • Meta
  • PWC
  • NewBalance

Facts & Features

  • Modular System

    You can swap cassettes within seconds.

  • Cable Colors

    Allows you to visually separate different applications from each other.

  • Cat.6a Cables

    Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.

  • Fiber Optic Cables

    OS2 and OM4 made with Corning® fibers.

  • Power over Ethernet

    Power your devices with PoE (STP: PoE / UTP: PoE++ Type 3).

  • 3 different cable lengths

    2.6ft covers 8RU, 6ft covers 30RU and 8.2ft covers 46 RU.

    (6 ft extractable + 2.3 ft overlength non-retractable)

  • Patented Pulley Mechanism

    Stores the excess length of the patch cables in the cassette.

  • 10-Year Warranty

    On the patchbox.one / Cassette / 8RU, 30RU and 46RU.

See how our cassettes work

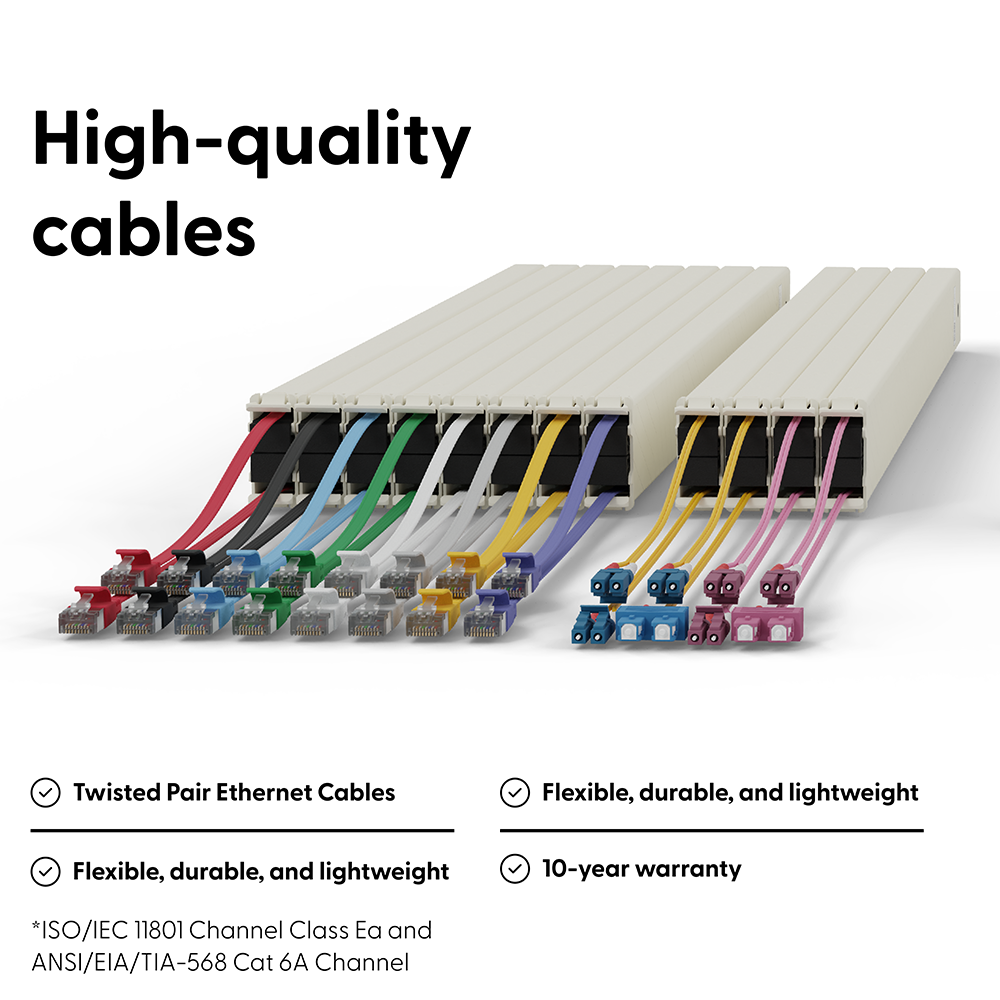

The easily exchangeable patchbox.one / Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.

Installed and ready to rock in a few minutes

Save money thanks to the patchbox.one. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.

Turn your Rack from a beast into a beauty

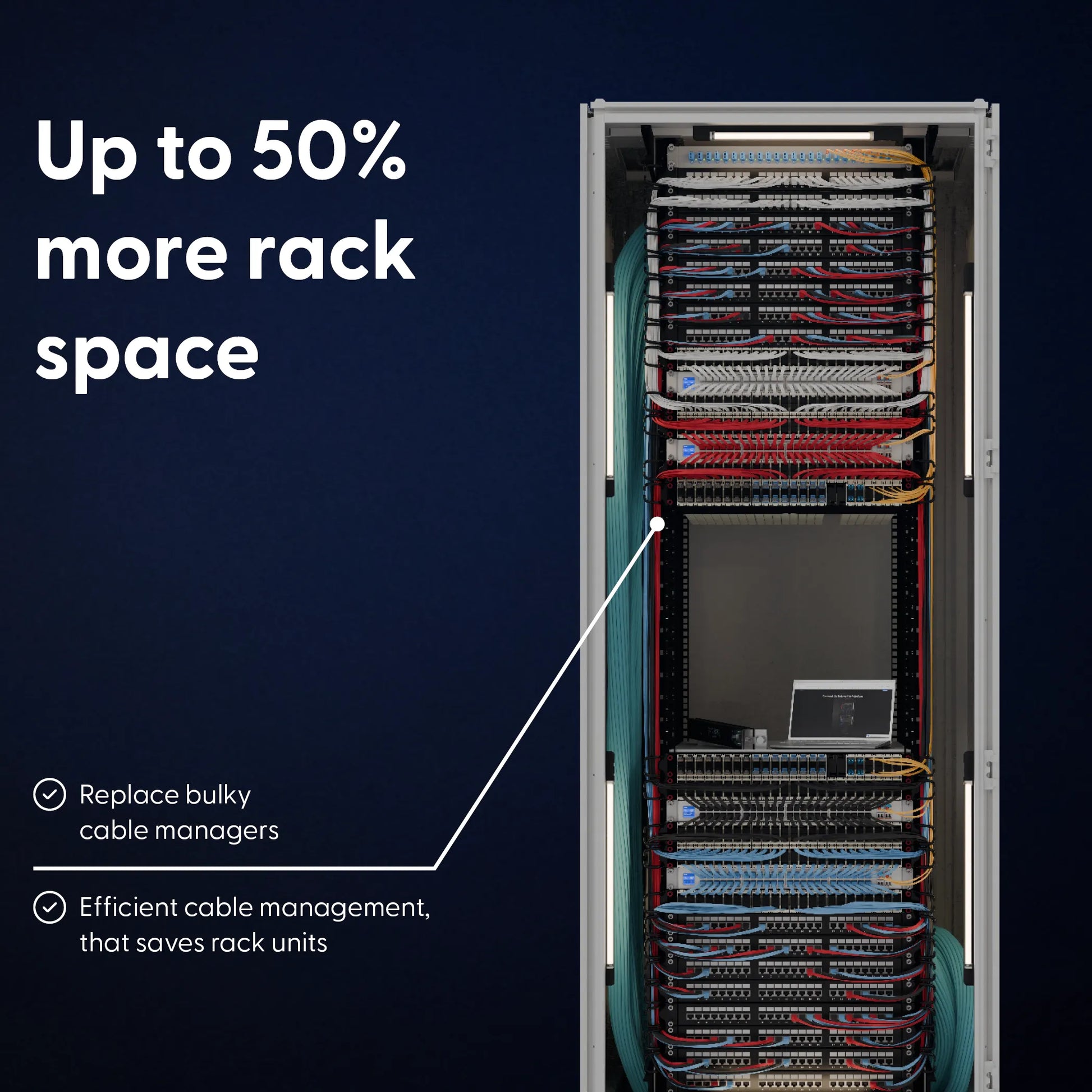

Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.

Before
After

Specifications & Information

Technical Specifications

OS2 Cable
OS2 RBS 9μ/125μ, G.657.B3, LSZH, Yellow, Single-Mode, RoHS compliant

OM4 Cable
OM4 RBS 50μ/125μ, LSZH, Erika Violet, Multi-Mode, RoHS compliant

Connector

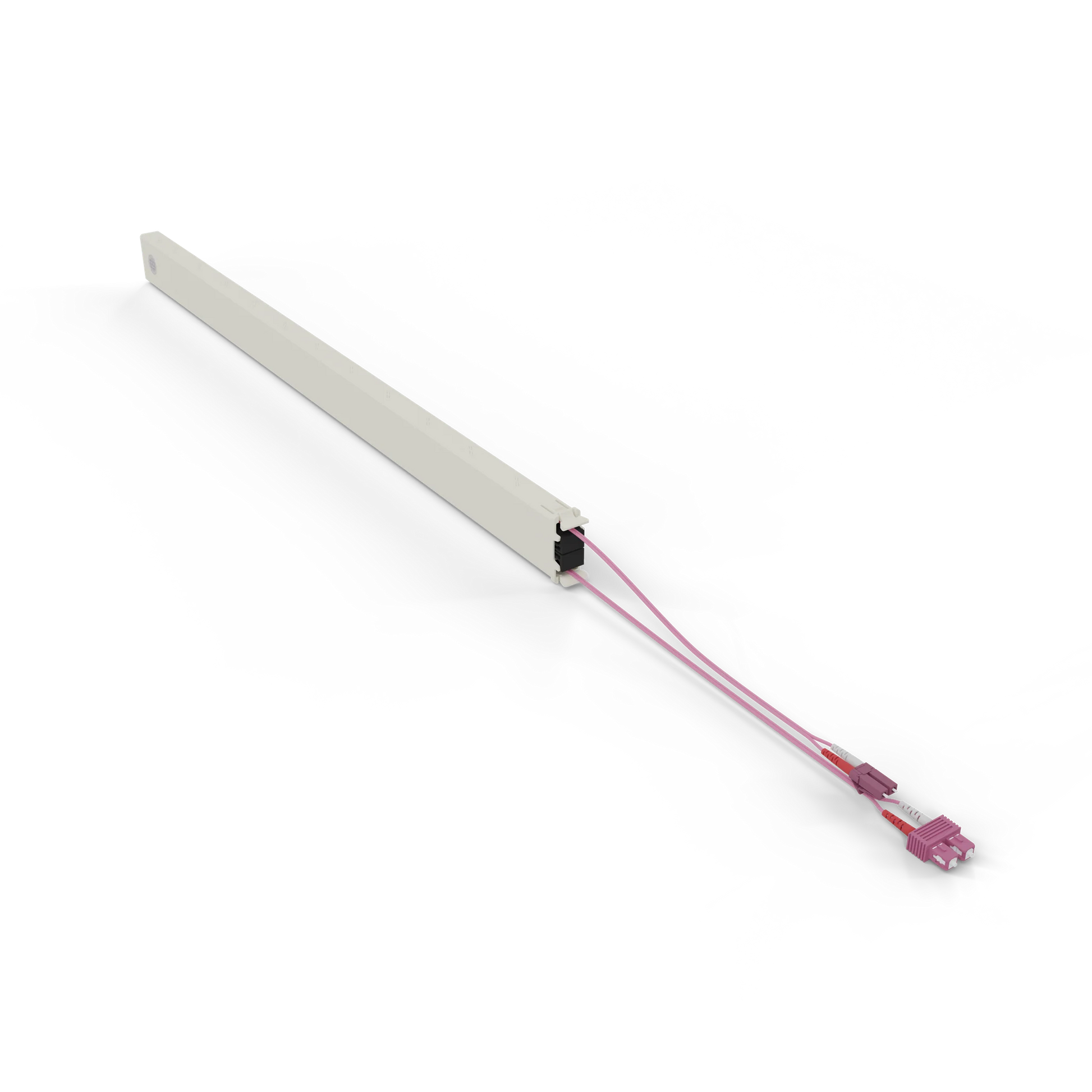

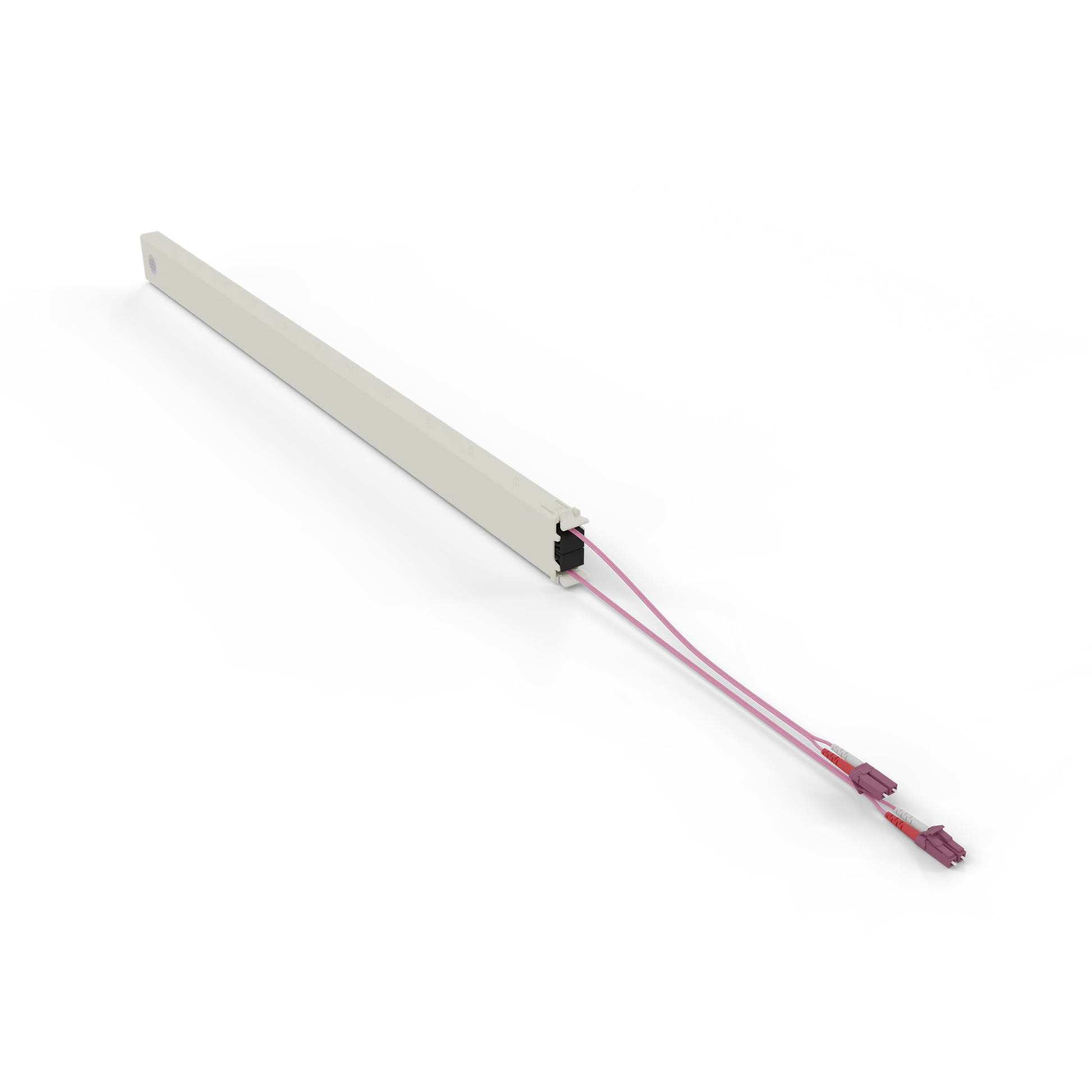

LC Duplex – LC Duplex / LC Duplex – SC Duplex

Cable length
8.2 ft cover 46 RU: 6 ft extractable + 2.3 ft overlength non-retractable

Cassette Profiles
ABS and RAL9001

Plastic Parts
Polyoxymethylene POM

Operating Temperature Range
50°F — 140°F

Ambient Humidity Non-Condensing
10% – 90%

Gross Weight
0.61 lbs

Packaging Dimensions
27.12″ x 1.85″ x 1.96″ WxDxH

HS-Code
8544 7000

Items included

1 x patchbox.one / Cassette / 46RU / OM4 or OS2

Shipping

Products are sold and shipped by exclusive PATCHBOX US Partner Synergy Micro Solutions.

Carrier:
Products are shipped with UPS.

The processing and delivery time depends on the shipping destination and the order volume. Find more information here.

Instructions & manuals

Tech Specs

Fiber Optic Cable Info Folder

Instructions
