Shorter Downtimes
The use of a PATCHBOX can already pay off from one downtime onwards
Up to 50% more space
In comparison to conventional cabling up to 50% more rack space
5-Year Warranty
Peace of mind, guaranteed for at least 5 years
Up to 8x faster
Maintenance, as well as installation is up to eight times faster
Facts & Features
-
Modular System
You can swap cassettes within seconds.
-
Cable Colors
Allows you to visually separate different applications from each other.
-
Cat.6a Cables
Tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards.
-
Fiber Optic Cables
OS2 and OM4 made with Corning® fibers.
-
Power over Ethernet
(STP: PoE / UTP: PoE++ Type 3)
-
3 different cable lengths
0.8m covers 8RU, 1.8m covers 30RU and 2.5m covers 46 RU.
-
Patented Pulley Mechanism
Stores the excess length of the patch cables in the cassette.
-
5-Year Warranty
On the PATCHBOX Plus+ and 365 - also applies to the cables.
See how our cassettes work

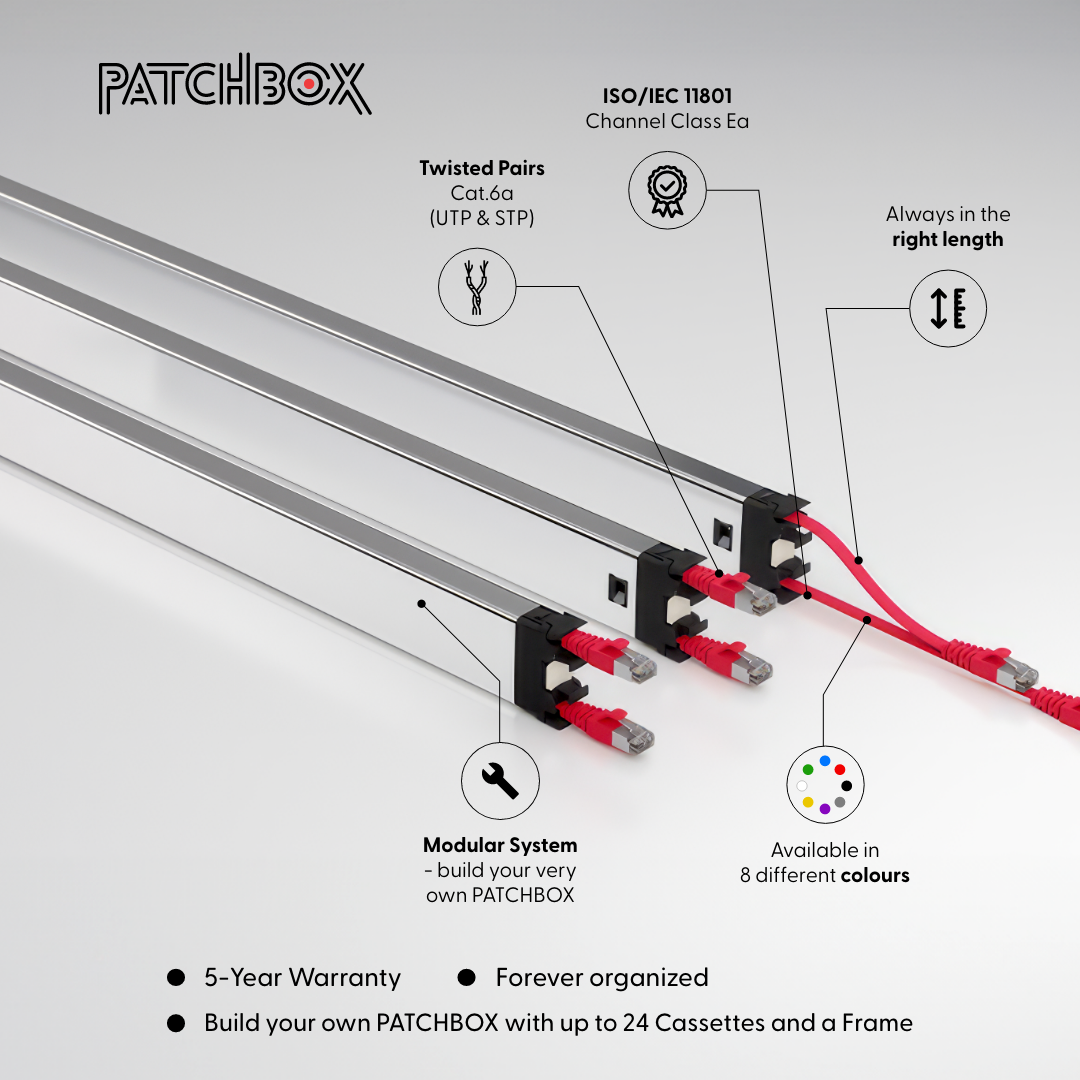

The easily exchangeable PATCHBOX Cassettes contain our flat ethernet cables. They are tested to ISO/IEC 11801 Ea Class and ANSI/EIA/TIA-568 Cat 6A Channel standards, RoHS compliant and capable of PoE (STP: PoE / UTP: PoE++ Type 3). Our cables are available in multiple colours and variants: as shielded or unshielded Cat. 6a cables (STP/UTP) and also as optical fiber (OS2/OM4) – the only length adaptable fiber optic cables on the market.
![](http://shop-us.patchbox.com/cdn/shop/files/Patchbox-Cassettes.webp?v=1707937066&width=1500)
Installed and ready to rock in a few minutes
Save money thanks to the PATCHBOX. The cable system retracts and stores unused cables safely and ensures they are ready when you need them. It also allows a higher density in your network rack than conventional methods. That equals more gear in the same space with more overview without the service of a cabling company.
![](http://shop-us.patchbox.com/cdn/shop/files/Patchbox-installed-in-minutes.webp?v=1707937069&width=1500)
Turn your Rack from a beast into a beauty
Keep your rack forever organized with our innovative cable management system. Simply retract unused cables or overlength back into the cassette to keep a better overview and simplify your network cabling. The Patchcatch, our 0RU cable manager alternative, helps you to manage your cables. Unlike conventional cable managers it does not waste a single rack unit, allowing you to use up to 50% more space in your rack.
![](http://shop-us.patchbox.com/cdn/shop/files/Network-Rack-Before.webp?v=1707937061)
![](http://shop-us.patchbox.com/cdn/shop/files/Network-Rack-After.webp?v=1707937059)
Specifications & Information
Technical Specifications
STP Cable
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
UTP Cable
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
Connector
RJ45 shielded plug, pins gold plated, snagless booted
Cable length
31.50″ cover 8RU
Cassette Profiles
Stainless steel, laser-welded
Plastic Parts
Polyoxymethylene POM
Operating Temperature Range
-4°F — 140°F
Ambient Humidity Non-Condensing
10% – 90%
Gross Weight
0.88lbs
Packaging Dimensions
27.17″ x 1.97″ x 1.97″ WxDxH
HS-Code
8544 4210
Items included
1 x PATCHBOX Plus+ STP / UTP Cassette with Cat.6a cable
Shipping
Products are sold and shipped by exclusive PATCHBOX US Partner Synergy Micro Solutions.
Carrier:
Products are shipped with UPS.
The processing and delivery time depends on the shipping destination and the order volume. Find more information here.
